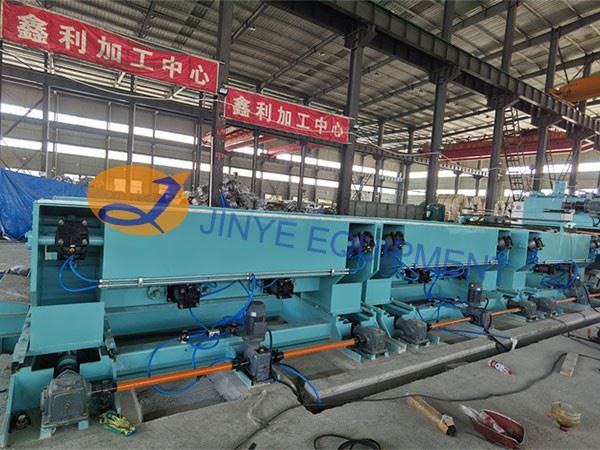

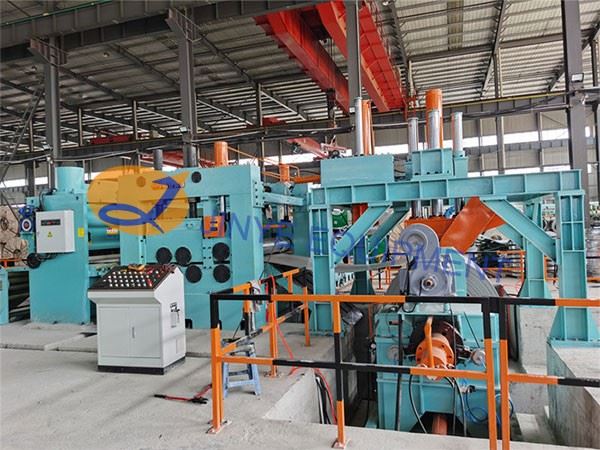

Thick Gauge Stainless Steel Cut To Length Line

Thick Gauge Stainless Steel Cut To Length Line
Thick Gauge Stainless Steel Cut To Length Line
Thick Gauge Stainless Steel Cut To Length Line
Thick Gauge Stainless Steel Cut To Length Line
Thick Gauge Stainless Steel Cut To Length Line

Thick Gauge Stainless Steel Cut To Length Line

Name: China OEM Thick Gauge Stainless Steel Cut To Length Line Manufacturers Suppliers Factory - Jinye Complete Equipment
Brand: Jinye
SKU: 246216966

Thick Gauge Stainless Steel Cut To Length Line is high precision heavy duty cut to length, its cost is much more than normal cut to length line budget. 2-16mm thickness range requires two levelers, stand beside each other, one leveler for 2-6mm, the other for 4-16mm. Moreover, the stainless steel sheet cutting line has edge trimming function, film coating, automatic stacking charaters, we are experienced in the thick stainless steel sheet cut to length line, can guide you to see running line in our customer plant...

Send Inquiry

Chat Now

Description

Technical Parameters

Introduction

Thick Gauge Stainless Steel Cut To Length Line 2-16 X 2000 Double Levelers With Edge Trimming is high precision heavy duty cut to length, its cost is much more than normal cut to length line budget. 2-16mm thickness range requires two levelers, stand beside each other, one leveler for 2-6mm, the other for 4-16mm. Moreover, the stainless steel sheet cutting line has edge trimming function, film coating, automatic stacking charaters, we are experienced in the thick stainless steel sheet cut to length line, can guide you to see running line in our customer plant.

Composition

No.	Composition	Parameter / Configuration
1	Coil Saddle	30T
2	Double mandrel uncoiler	Φ500-800 mm, 30T load
3	Pinch feeder and Five Roller Leveler	Φ250 mm, 200KW
4	Pit accumulator	6000mm
5	Side guide 1#	Hydraulic 1000-2000mm
6	Edge Trimmer	Separate body, frequency control, 3-8mm edge
7	Scrap winder and over roll table	Scrap guide, hydraulic push winder
8	Side guide 2#	Hydraulic 1000-2000mm
9	Double levelers	two 4Hi levelers, 300KW, Φ210 mm, 132KW, Φ130 mm
10	Rotary encoder	Rep, Omron
11	Hydraulic Shear	Heavy duty, 55KW
12	Roll table	4000mm
13	Stacker and X table	bomb hatch type, 6m x 2
14	Hydraulic system	Rexroth valves, Yuken pump
15	Electrically control system	Parker DC drive, Siemens PLC and HMI

SUS201 , SUS304 , SUS410 Stainless Steel Specification for reference:

SUS series	National grade	ASTM grade	TS(Mpa)	YS(Mpa)
200 Cr-Mn-Ni	12Cr17Mn6Ni5N	201	720	390
	12Cr18Mn9Ni5N	202	680	356
300 Cr-Ni		301	755	275
	0Cr18Ni9	304	680	320
	00Cr19Ni10	304L	560	270
	0Cr25Ni20	310S	655	310
	00Cr17Ni14Mo2	316L	560	290
400 Cr	1Cr13	410
		430	345	510

Product Advantage

Stainless steel, such as SUS200, SUS300, SUS400 series, compared with normal carbon steel Yield strength ≤270Mpa Tensile strength≤465Mpa, stainless steel sheet strength Yield strength ≤500Mpa Tensile strength≤800Mpa.

Cut to length lines for Thick gauge

Why choose us

Jinye Complete Equipment give customized options, customer tells their coming raw materials, finished sheets specification, production capacity, precision tolerances, etc, We will offer each customer a comprehensive proposal for entire Cut to length lines for Thick gauge.
