Name: China OEM Stainless Steel Cut To Length Manufacturers Suppliers Factory - Made in China - Jinye Complete Equipment
Brand: Jinye
SKU: 229075995

The stainless steel sheet coils especially high quality bright surface SS sheet, like 300series, requires edge trimming before cutting to length, the whole cut to length line will include decoiler, 6high leveler, edge trimmer, servo feeder, servo shear, stacking system, in high speed high performances...

Send Inquiry

Chat Now

Description

Technical Parameters

Introdution

Jinye Complete Equipment specializes in the research and development of stainless steel cut to length line machine, Servo Cut to Length Line, Stainless Steel Coil Slitting Line and their applications for nearly 30 years.
The stainless steel sheet coils especially high quality bright surface SS sheet, like 300series, requires edge trimming before cutting to length, the whole cut to length line will include decoiler, 6high leveler, edge trimmer, servo feeder, servo shear, stacking system, in high speed high performances.

Stainless-Steel-Cut-to-Length-with-Edge-Trimming

Products Description

Composition

No.	Composition	Qty
1	Coil preparation saddle	1pair
2	Coil loading car	1set

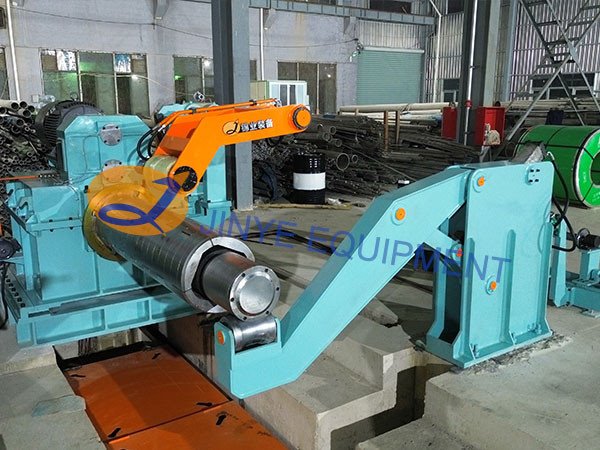

4	Uncoiler+Coil snubber roller + paper winder	1set
5	6hi leveler+ work rolls cleaner	1set
6	Cascade roll loop1	1set
7	Side guide	1set
8	Through shaft edge trimmer	1set
9	veritcal scrap winder	1set
10	cascade roll loop2	1set
11	side guide	1set
12	NC Servo feeder	1set
13	Dual sides film /electrostatic paper laminator	1set
14	Servo shear	1set
15	convey belt + waste sheet car	1set
16	Dual stackers	1set
17	Output roll tables	1set
18	Hydraulic system	1set
19	Pneumatic system	1set
20	Electric control system	1set

Parameters

	Material	Stainless steel SUS 304 & 316 Cut to Length
	coil plate thickness	0.3-3.0mm
	Coil plate width	300-1600mm
	Coil outer diameter	≤Φ2000mm
	Coil inner diameter	Φ508mm,Φ610mm
	Max coil weight	25T
	Mechanic properties	Yield strength σ_b≤510N/mm² Tensile strength σ_s≤780N/mm²
	Cutting length	Stacker1, 300-3000mm/ stacker2, 400-6000mm
	Cutting length tolerance	L=2m≤±0.3mm(2.0mm)
	Diagonal length tolerance	L=2m≤±0.5mm(2.0mm)
	leveling precision	≤±1.2mm/m²
	Stacking height	Include cushion wood 700mm, max 5T.
	Cutting burrs	Thickness ≤1.0mm, ≤0.03mm Above 1.0mm, burrs ≤ 3% of thickness
	Stacking precision	Deviation between layers: ≤1.0mm in width, ≤1.5mm in length Deviation in stacking height ＜3mm for 500mm height
	Edge trimming width	3-8mm
	Cutting speed	0-60m/min Sheet length(mm) cutting times(pcs/min) 1000mm 50pcs 2000mm 30pcs 3000mm 20pcs 4000mm 15pcs 6000mm 10pcs
	Threading speed	0~15m/min
	Total power	~350Kw
